Vertical filter:

Summary：

Vertical filter is widely used in chemical, petroleum, power filter, water supply and other industries, has the characteristics of large filtering area, high filtering precision, low pressure loss and long service life and stable performance. The separation efficiency can be as high as 99%~99%99, which is the highest separation efficiency and the most stable separation equipment with different filter media, reasonable structure and polarity combination.

cy888彩运Structure characteristics:

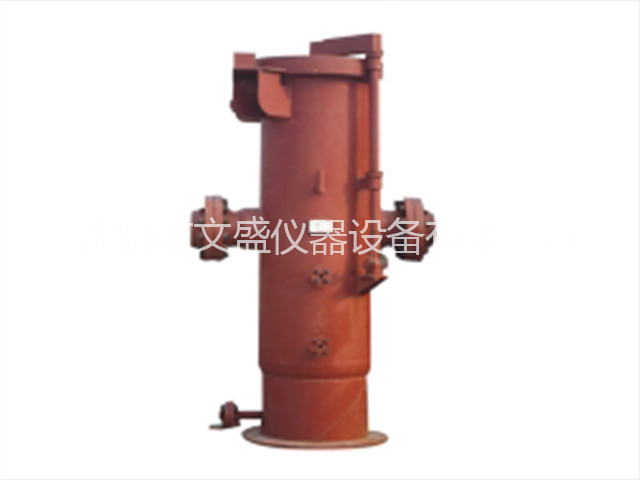

The vertical filter is composed of a fast opening blind plate, a cylinder body, a filter element, a connecting pipe, a supporting leg, and the like. The body is lifted by the lifting machinery measures. When cleaning the filter core, the lifting mechanism is used to lift the blind plate cover, rotate 90 degrees to the side, and then remove the filter element.

Principle:

cy888彩运Separation of the solid particles or droplets from the gas by using the filter medium (filter element). The separation efficiency is high, and the filtration separation can separate the fine solid dust and the liquid mist droplets in the gas.

Function:

Double separation: gravity settling separation and precision filtration separation.
